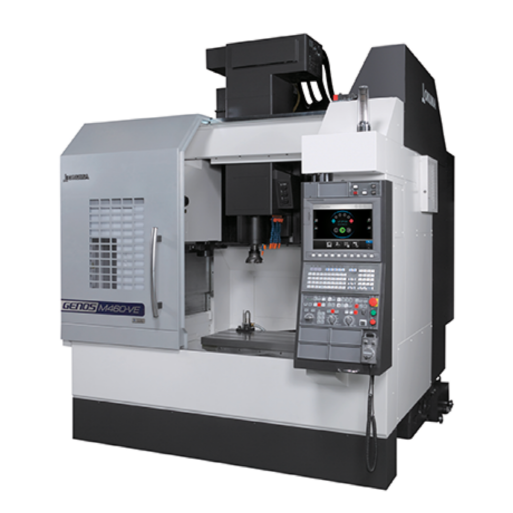

GENOS M460VE
OSP
OSP
Characteristics
| LMG |
 |
| XYZ |
Model variations
| 1340 VMC(3AX) 1 Milling Spindle |
| Category | Item | Specification |
| Travels | Stroke X[mm] | 762 |
| Stroke Y[mm] | 460 | |
| Stroke Z[mm] | 460 | |
| Rapid traverse(X)[m/min] | 40 | |
| Rapid traverse(Y)[m/min] | 40 | |
| Rapid traverse(Z)[m/min] | 32 | |
| Table | Workpiece allowable Load[kg] | 700 |
| Table Size[mm] | 1000×460 | |
| Category | CNC brand | OSP |
| CNC system | OSP-P300M | |
| Origin | Japan |
Milling spindle 1(H1)
| Spindle name | H1-1 | H1-2 | H1-3 | Taper | 7:24 taper No. 40 | 7:24 taper No. 40 | 7:24 taper No. 40 | Rotational speed[rpm] | 8000 | 12000 | 15000 | Power[kW] | 7.5(Cont)!11(10min) | 18.5(Cont)!22(10min) | Torque[Nm] | 198 | 199 | 199 | Transmission |
Tool Magazine 1
| Tool holder taper | 7:24 taper No. 40 | No. of tool storage[ea] | 20 32 | Tool diameter[mm] | 90(A)!125(B) | Tool length[mm] | 300 | Tool weight[kg] | 8 | Tool change time(TTT)[s] | Tool change time(CTC)[s] |
*A: Max. tool diameter (with adjacent tools)*B: Max. tool diameter (without adjacent tools), C: Max. tool diameter (single point)
Guide way
| Axis | X | Y | Z |
| Guide way | LMG | LMG | LMG |
| Qty | 2 | 2 | 2 |
Photo gallery
Not responsible for misprints or data errors. Actual product appearance may differ.
